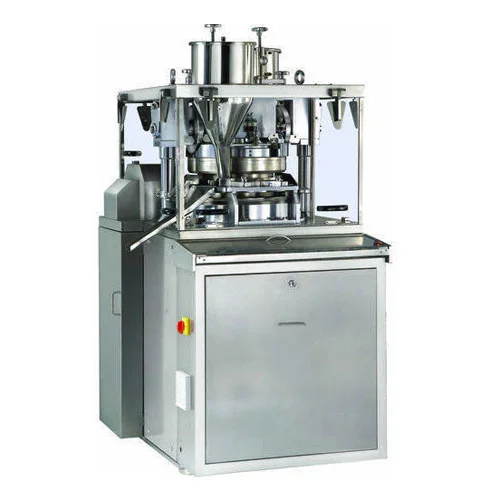

Used Single Rotary Tablet Press Machine

Approx Price:

Contact Parts: SS316
Applications: Pharmaceuticals and food industry, Veterinary tablets
Tablets Output /hour* (Max.): 38400 to 62400
Upper Punch Penetration (mm): 1.5 – 8
Turret RPM Max: 40
Max. Operating Pressure: 10 Ton
Max. Tablet Diameter: 25mm to 40mm

TECHNICAL SPCIFICATIONS
Model No.	DPM-TCM12	DPM-TCM16	DPM-TCM20
Number of Station	12	16	20
Type of Tooling	Special Type	‘D’	‘D’
Output	15,840 Max.	13,400 – 40,220	16,800 – 52,000
Max. Operating Pressure	12 Ton	10 Ton	10 Ton
Max. Tablet Diameter	40 mm	25 mm	25 mm
Max. Depth of Fill	30 mm	20.5 mm	20.5 mm
Upper Punch Entry Penetration	1.5 – 8 mm	1.5 – 8 mm	1.5 – 8 mm
Main Electric Motor	3 H.P.,950 RPM, 415 Volts, 50 Hz	3 H.P.,1440 RPM, 415 Volts, 50 Hz	3 H.P.,1440 RPM, 415 Volts, 50 Hz
Overall Dimension	980 mm x 1020 mm x 1820 mm
Net Weight	1200	1100	1100

Salient Features of Used Single Rotary Tablet Press Machine

Designed as per cGMP Standards
Suitable for Small Batch Production requirements
Available in 12, 16 & 20 Stations
Sturdy, Robust Heavy Base for Handling High Pressure at
High Speed with less Vibration
Turret Manufactured from SG 500/7 crack resistant Special Graded Cast Iron
Centralized Lubrication System
Onboard Ampere Meter to Indicate Motor Overload
Digital Tablet Counter
User friendly, Easy to Clean, Quick Changeover & Hassle-Free Maintenance.
Variable Speed Pulley

Safety Features of Used Single Rotary Tablet Press Machine

Overload Pressure Release Mechanism
Turret Anti Turning Mechanism
Overload Protection
Interlocking Safety Guards with Limit Switch
Emergency Stop Button
